SC LS-100

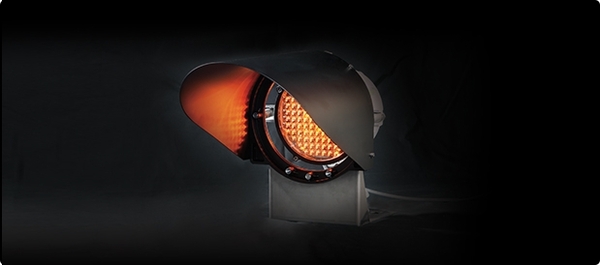

This self-powered range light is designed for long-uninterrupted operation on fixed structures. Product includes on-board solar engine, premium batteries, and charge controller. Optional auxiliary connector for external charger or external solar module where additional power is required.
- Range 10 NM (Tc=0.74) 15 NM (Tc = 0.85)
- Available in IALA colours: Red, Green, White, Yellow
- Light contained in rugged aluminum housing; body constructed of UV-resistant polyethylene
- Light is horizontally and vertically adjustable in the field
- Integrated flasher with daylight switch and solar charger
- Standard VRLA battery or optional NiCd for low temperature installations
- Ventilated battery compartment
- Solar modules protected by tempered glass
- Adjustable intensity and range
- Configuration and field maintenance with Mk2 programmer
- Optional auxiliary connector for external charger or supplementary solar module
- Optional GPS synchronization
- Optional Integrated GSM remote monitoring
| Lens Visual/Mechanical Diameter | 6.3 in (160 mm) |
| Lens Material | UV stabilized Polycarbonate |
| Light Source | Light Emitting Diodes (LEDs) |
| Vertical Divergence | 4º @ 50% (±1º) and 8º @ 10% (±2º) |
| Solar Modules | 3 x 11 W |
| Battery | VRLA GEL-Type, 60 Ah/12V |
| Weight | 81.54 lbs (37 kg) |
| Overall Height | 24.21 in (615 mm) |
| Overall Width | 20.07 in (510 mm) diameter |
| Installation | 3 x M10 on 13 in (330 mm) diameter |
