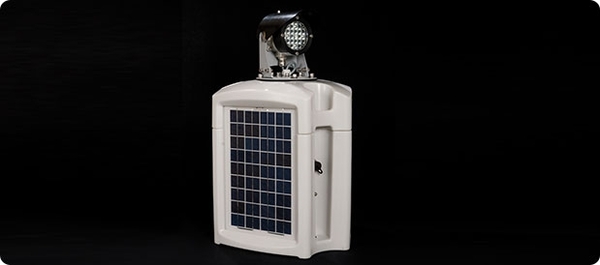

SC LS-100

This self-powered range light is designed for long-uninterrupted operation on fixed structures. Product includes on-board solar engine, premium batteries, and charge controller. Optional auxiliary connector for external charger or external solar module where additional power is required.

SC LS-100
  • Range 10 NM (Tc=0.74) 15 NM (Tc = 0.85)
  • Available in IALA colours: Red, Green, White, Yellow
  • Light contained in rugged aluminum housing; body constructed of UV-resistant polyethylene
  • Light is horizontally and vertically adjustable in the field
  • Integrated flasher with daylight switch and solar charger
  • Standard VRLA battery or optional NiCd for low temperature installations
  • Ventilated battery compartment
  • Solar modules protected by tempered glass
  • Adjustable intensity and range
  • Configuration and field maintenance with Mk2 programmer
  • Optional auxiliary connector for external charger or supplementary solar module
  • Optional GPS synchronization
  • Optional Integrated GSM remote monitoring
Lens Visual/Mechanical Diameter 3.93 in (100 mm)
Lens Material UV stabilized Polycarbonate
Light Source Light Emitting Diodes (LEDs)
Vertical Divergence 4º @ 50% (±1º) and 8º @ 10% (±2º)
Solar Modules 3 x 11 W
Battery VRLA GEL-Type, 60 Ah/12V
Weight 81.54 lbs (37 kg)
Overall Height 24.21 in (615 mm)
Overall Width 20.07 in (510 mm) diameter
Installation 3 x M10 on 13 in (330 mm) diameter
